KIT ALERT! Starship Command Bridge Light & Sound Kit for AMT from Starling Technologies

KIT ALERT!!

Presents

Starship Command Bridge Light & Sound kit for AMT

Kit Producer: Starling Technologies™

Kit Scale: All versions of AMT USS Enterprise Command Bridge

Kit Materials: Electronic Lights, plastic, Fiber optics

Number of Pieces: Over 30

Kit Price: Regular kit $120.00 shipped + options

Shipping Amount: USA Free shipping included. International shipping extra.

Shipping: World-Wide

Kit Availability: NOW

Payment Methods Accepted: PayPal, Credit cards through PayPal , Money Order

PayPal Address: sjk1970@gmail.com



1



Custom Built in the USA.
For AMT 808 and all classic versions of the AMT Command Bridge.
It is our pleasure to introduce to you our latest, and only Light and Sound kit available on the planet.
Bring your Bridge to Life while Commanding your own Starship with our Starship Command Bridge Light and Sound kit.

Cruise at warp speed while your crew perform their routine duties. Suddenly, red alert sounds, red lights flash throughout the ship while you come under attack from an alien vessel.

The kit was originally intended to be released early 2013, but just wasn’t quite right. With the developement of a totally new board, it is now finally here. Provides sounds: normal bridge activity, red alert and alien vessel. Lighting for all panels, chaser light for under view screen, random flashing lights for fiberoptic panel lighting, and red alert lighting activated when under attack.

Provides enough lighting for the AMT complete bridge or the classic half bridge versions of the TOS Enterprise Bridge.

High quality Light(with chaser) and Sound Boards Designed for ease of use and longevity.

Size of Light board is 50mm x 43mm (1 15/16″ x 1 11/16″)

Runs on included 9v Wall adapter.



2

Detailed PDF manual with many photos and info.



3

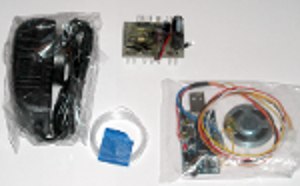

Some of over 30 parts included in the Default kit.



4

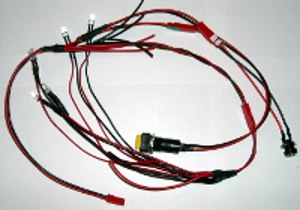

Optional Pre-soldered Main Harness. All other LEDS and Light tape will need to be soldered to this harness. Default kit comes with connectors to make your own harness to save cost.



5

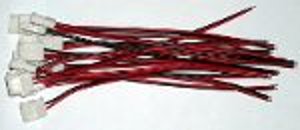

Optional solderless LED Tape connectors. Instead of soldering directly to the tape, you can attach these simple to use connectors and solder the wire leads to your harness.



VIDEO

This is not a completed model. A few sections of the bridge were modified to demonstrate what the kit will do. The models decals were used for demonstration. Paragrafix display screens are recommended.





Package Contents:

1 x Fully assembled Bridge light board with on board chaser lights.

1 x High quality sound board with speaker. Rear of board has 1/8″ sound out jack for external amplified speakers if you wish to use them.

3mm red LEDs pre-wired.

5mm white LEDs pre-wired.

3mm white LEDs pre-wired.

2pin Male and Female jst connectors.

9v power supply.

DC jack.

piece of 1/4″ polystyrene tubing.

Enough .5mm fiberoptics to get you started.

Push Button.

Power Button.

1x Detailed instructions emailed after purchase.

Requirements:
Recommended TOS Bridge Display Screens from ParaGrafix(optional)

Recommended TOS Bridge Photoetch Set for AMT 1/32 Paragrafix(optional)

Scratch building of walls is required to hide lighting.

Custom built base is required for kit installation.

Your normal modeling tools.

Clear epoxy.

.040 – .080 polystyrene sheets.

Solder and soldering iron.

Heat shrink 2mm and 5mm or Black electrical tape.

100-220grit sandpaper.

Wire (Recommended 22awg )

Shipping is included

If you are a modeler who is a master at soldering and installing light kits, you can save some money and purchase the default lighting kit without options.
If you’re new to lighting or want to save some time and make things a bit easier, purchase the 2 available options.
