KIT ALERT!!

Presents

Gen/2 Photon Torpedo Kits

*Kit Producer: Starling Technologies™

*Kit Scale: Many scales supported.

*Kit Materials: Electronic circuit, LEDs, connectors, resistors

*Number of Pieces: 39

*Kit Price $95.00

*Shipping Amount: USA shipping included. First Class International $12.00

*Shipping Restrictions: Worldwide

*Kit Availability Date: NOW

*Payment Methods: PayPal, Credit cards through PayPal ,Check, Money Order

*PayPal E-Mail Address: sjk1970@gmail.com

*Kit URL: https://www.starling-tech.com/index.php?id=gen2-torpedo

*Kit Description:
Designed and Built in the USA.

Starling Brings even more Life Like Effects to your Starship with our next line of amazing, Highest Quality available Sound, Photon Torpedo boards.
Our older model RV1 Photon torpedo boards provided awesome light and sound effects. The only problem was, the sound was not available in all interactive modes.

Bringing your Star Ship the most Life like effects available ANYWHERE, we introduce our Next generation of E/FX™ Photon torpedo boards. All boards provide dual photon torpedo effects, with the exception of the USS Reliant version, which will include Forward and Aft dual torpedoes, 1701-E, and K’tinga.
Offering 3x the quality of sound and almost double the volume of the RV1 boards, the super high quality sound boards also offer a 1/8″ sound out jack for external amplified speakers, if one wishes to use the feature. The sound from these boards are truly amazing.

Also included on this board is our accurately timed navigational running and strobe lights for the labeled starship.
You are getting a two for one effect board.

The Model# S-XYZ-1 LED board provides user interactive effects designed to mimic the Photon Torpedoes fired from various star ships as seen in the movies to add life like visual effects as well as audio effects. Designed for models offered by various manufactures including : Polar Lights , AMT and Revell. Various star ships include : NX-01 NCC-1701-Refit/A, Enterprise D, Enterprise E, TOS Enterprise, Voyager, K´tinga, or any other ship requiring this effect. Designed for ease of use and longevity, the board can be mounted directly inside the model, though we prefer to mount them inside the stand for easy access and control in the future.

Powered by 6 volt or 9 volt power supply either by battery or by a Switching DC power supply adapter that you plug in to the wall(Not Included)
Measures Approximately 35mm x 37mm..

Supported Ships below.

NX-01

Features and Usage:
All modes produce sound with effects.
1) Press push button quickly to fire single torpedo. Press again to fire opposite torpedo.
2) Hold button for 1sec to fire 3 fast torpedoes, twice.
3) Hold button for 1 1/2sec for Battle mode. Battle mode fires random torpedoes for a longer period of time than the two modes above.

Accurate Navigational Running and Strobe lights are provided for the labeled ship.

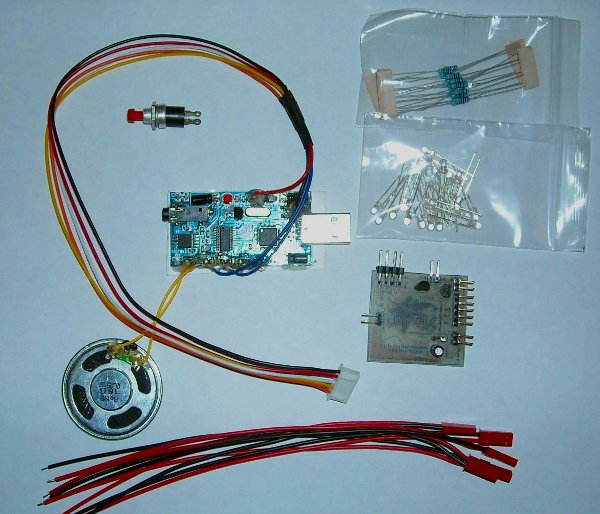

Included in Kit:

1) Gen2 torpedo Board.
1) High quality sound board with speaker. Rear of board has 1/8″ sound out jack for external amplified speakers if you wish to use them.

For nav/strobe:
10) 3mm white LEDs
2) 3mm red LEDs
2) 3mm green LEDs
14) 470 ohm resistors

For torpedoes
2) 1.8mm red LEDs ( resistors are already soldered to board for these connections)
6) 2pin JST connectors provided so soldering to board is not necessary.
1) Push button.

Video
Hear the Authentic High quality sound.

——————————————————————————–

1701-Refit and 1701-A

Features and Usage:
All modes produce sound with effects.
1701-A has different Nav/Strobe timing, see video. 1) Press push button quickly to fire single torpedo. Press again to fire opposite torpedo.
2) Hold button for 1sec to fire 3 fast torpedoes, twice.
3) Hold button for 1 1/2sec for Battle mode. Battle mode fires random torpedoes for a longer period of time than the two modes above.

Accurate Navigational Running and Strobe lights are provided for the labeled ship.

Included in Kit:

1) Gen2 torpedo Board.
1) High quality sound board with speaker. Rear of board has 1/8″ sound out jack for external amplified speakers if you wish to use them.

For nav/strobe:
10) 3mm white LEDs
2) 3mm red LEDs
2) 3mm green LEDs
14) 470 ohm resistors

For torpedoes
2) 1.8mm red LEDs ( resistors are already soldered to board for these connections)
6) 2pin JST connectors provided so soldering to board is not necessary.
1) Push button.

Video
Hear the Authentic High quality sound. End of video shows the formation lights for the 1701-A. Torpedo Effects are the same.

New!! TWOK Battle Damage NCC-1701 Refit version.

This version employs only one torpedo tube so you may recreate the damaged torpedo bay as seen in StarTrek the Wrath of Kahn.
Press button for a single torpedo to fire.
Hold button 1sec to fire 3 slow torpedoes.
Hold button for 2sec to fire 3 fast torpeodoes twice.

——————————————————————————–

USS Reliant

Features and Usage:
All modes produce sound with effects.
1) Press push button quickly, 3 Forward alternating torpedoes fire with sound.
2) Hold button for 1sec to fire aft torpedo. 3 Aft alternating torpedoes fire with sound.
3) Hold button for 2 sec for battle mode. A barrage of random forward and Aft torpedoes fire for dramatic effects.

Accurate Navigational Running and Strobe lights are provided for the labeled ship.

Included in Kit:

1x Gen2 torpedo board.
1x High quality sound board. 1/8″audio out jack provides even greater sound quality if one wants to plug into amplified speakers.<
6x 3mm red 6x 3mm green 6x 3mm white LEDs are provided for Nav/strobe flashers. 18 resistors are provided.
4x 1.8mm LEDs for torpedoes. No resistors required.
8x 2pin JST connectors with leads.
1x push button
Fiber optics may be required for smaller scale ships.

Video
Hear the Authentic High quality sound.

——————————————————————————–

Sovereign Class Enterprise E:

Features and Usage:
All modes produce sound with effects.
1) Press push button quickly to fire Forward torpedo volley. 4 flashes will fire with sound.
2) Hold button for 1sec to fire aft torpedo. 3 flashes will fire.
3) Hold button for 2 sec for battle mode. A barrage of random forward and Aft torpedoes fire for dramatic effects.

Accurate Navigational Running and Strobe lights are provided for the labeled ship.

Included in Kit:

1x Gen/2 torpedo board.
1x High quality sound board. 1/8″ audio out jack provides even greater sound quality if one wants to plug into amplified speakers.
14x 3mm white LEDs with resistors are provided for all nav strobes.
2x 1.8mm white torpedo LEDs. Fiber optics may be required for smaller scale ships.
6x 2pin JST connections.
1x push button.
Fiber optics may be required for smaller scale ships.

Video
Hear the Authentic High quality sound.

——————————————————————————–

K Battle Cruiser.

Our new Photon torpedo effect for the Klingon Battle Cruiser, The K’tinga, features effects as seen in the beginning of Star Trek the Motion Picture. Forward Torpedo tube glows to full intensity, then unleashes 4 torpedoes. Aft torpedo tube glows to full intensity, then unleashes a single torpedo.
Perfect addition to your 1/350 resin made by Steve Neisen.

Features and Usage:
All modes produce sound with effects.
1) Press push button quickly to fire Forward 4 torpedo volley.
2) Hold button for 1sec to fire aft torpedo.
3) Hold button for 2 seconds to enter “Cruise Mode”. In this mode your ship will automatically fire torpedoes about every 20sec, forward torpedoes will fire followed by aft torpedo firing 10sec later. The process continues until you press the button.

Accurate Navigational Running and Strobe lights are provided for the labeled ship.

Included in Kit:

1x KBC torpedo board.
1x High quality sound board. 1/8″ audio out jack provides even greater sound quality if one wants to plug into amplified speakers.
6x 3mm red LEDs are provided for torpedoes, torpedo tubes, and the nav flashers.
2x resistors for the 2 red NAV LEDs.
7x 2pin JST connectors with leads.
Fiber Optics.
1x 3/16″ polystyrene tubing.
1x push button

Video
KBOP was used to mock-up the effect.
